OGP

DEOM represents the US-based OGP in sales, maintenance and training for measuring equipment for the Czech Republic and Slovakia. OGP manufactures a wide range of multisensor measurement machines and has been in the optical measurement industry for nearly 80 years. They are the oldest manufacturer of optical measurement devices in the world.

Benefits of OGP products

High-precision optical 3D and 2D measurement
Can handle all types of materials (white, black and glossy surfaces)
Suitable for serial and individual measurement
Works well in the laboratory or production line
Can be expanded to include other sensors (scan touch, touch, laser, rotation)
Easy to operate using icons (no need to enter complicated codes)
User interface available in Czech
Can extend software to work with a 3D model

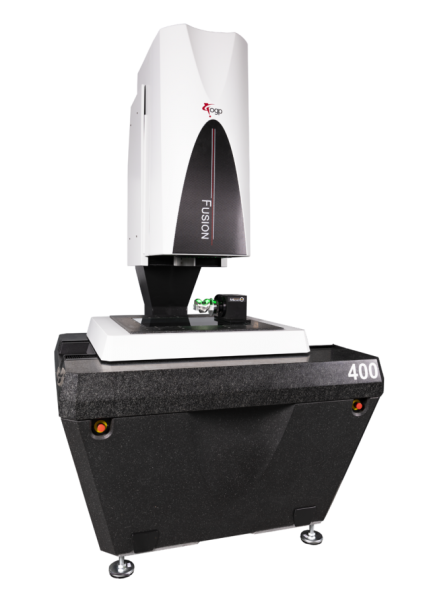

FUSION

3D Multisensor measuring system
Large field of view optics 100 mm
Instant measurement and evaluation
Software enable work with 3D model

SmartScope Flash & CNC

3D Multisensor measuring system
Universal for all types of measurement
Wide range of sizes up to 1500 x 2000 mm
Software enable work with 3D model

SmartScope E Series

3D Multisensor measuring system
Easy to use software
Sturdy, stable construction
Measuring system at an affordable price

SNAP

2D Optical measuring system
Large field of view (100 mm)
Automatically detects a placed part
Ideal for quick check

TurnCheck

3D automatic laser scanner
For measuring complex shapes
No need for software alignment
High point density

ShapeGrabber

Optical system for measuring shafts
Accurate and fast measurements
No need for alignment
Measuring GD&T and threads evaluation

SmartScope Vantage

3D Multisensor measuring system
Higher accuracy than Flash & CNC
Optional with tilting head PH10 (+ SP25)
Software enable work with 3D model

SmartScope SP

3D Multisensor measuring system
Optimized for accurate scanning
Designed for scanning probe performance
Software enable work with 3D model

SmartScope ZIP

3D Multisensor measuring system
Universal for all types of measurement
Offers widest range of sensors
Software enable work with 3D model

FlexPoint

3D coordinate measuring system
Uses tilting head PH10
No need for exchanging sensors
Software enable to work with 3D model

LAZER

Automatic laser scanning system
Evaluation of surface topography
Colorful graphical render
Video imaging to locate the part

ZONE3

Advanced control and evaluation software for working with OGP measuring systems. Software with a modern interface and wide range of implemented functions, including working with a 3D CAD model and with the possibility of operator view, where users with only minimal training can securely launch and run programs.

Manage all types of sensors in the same software program
Automatically generated scanning trajectory to make it easier to create a measuring program
Program optimization based on position on the machine, scan sensor and zoom
ISO and ASME evaluation
Evaluation of advanced elements – screw threads, gears, roughness
Advanced work with variables
Supports all standard CAD model format including PMI

Versions:

Express – contains all characteristics, commonly used scanning tools, basic geometric tolerances, and 2D model support

Prime – contains all Express properties as well as advanced scanning tools, advanced geometric tolerances,conditions and cycles, 3D models, and customizing protocol headers

Pro – contains all Express and Prime properties as well as screw thread and gear assessment, PMI (model which carries data about dimensional geometrickal tolerances) support, semiautomatic creation of programs using 3D models

Offline – version for creating programs without a measurement machine Contains all Pro functions

ZONE3 is standard on FUSION, FlexPoint, SmartScope Flash & CNC, SmartScope Vantage, Smartscope SP, Smartscope ZIP, Lazer a volitelně u přístrojů SNAP.
